Advanced Research Microscope

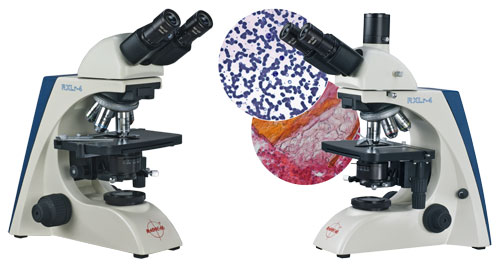

RXLr Series Research Microscopes are designed with outstanding technological expertise of Radical which also extends the capabilities for education and research work. The quality assurance throughout the manufacturing process ensures demanding performance standards, which are matched with exceptional economy in cost. Extra clarity and contrast is provided through our high performance color corrected infinite optical system designed in collaboration with SEIKO Japan. The microscope is robust, easy to operate and equipped with research grade optics. By using anti-mold paint and sealing anti-mold agents inside the microscope the RXLr Series are designed for use even in hot and humid environment. The RFI optical system from SEIKO provides significantly enhanced image clarity in variety of observation methods from brightfield to reflected light flourescence. RXLr-4 is available in different variants alongwith many practical accessories which can be used for education, hospital and research laboratories.

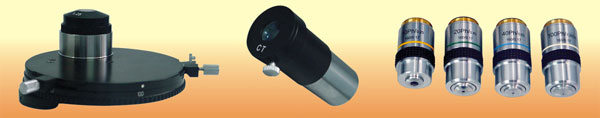

RXLr-4 Optical System Superb clarity and flatness from RFI Optical System

RXLr-4 Series Research Microscopes have been designed with RFI Optics for Universal Infinite System by SEIKO Japan. RFI Optical System delivers outstanding clarity at any magnification because chromatic aberrations and curvature of field are both corrected over the entire field of view when the field number is 20mm. FI Optics provides longer working distance and higher Numerical Aperture. The microscope optics have anti-reflection, mechanical parts are also anti-mold & hard coated to sustain all kinds of working environments. Unique infinite plan phase contrast system has been designed by SEIKO Japan to provide excellent image contrast in demanding applications. Other routine and higher grade objectives such as APO, Long Working Distance, etc. are also available with different magnifications if the situation calls for it.

Coolscopes

RXLr-4 series with optical system and high resolution routine and cool cameras JENOPTIK-GERMANY provide price/performance ratio for different microscopy techniques to give true colors for documentation and research applications.These imaging systems are controlled by an extensive user friendly software capture pro.

Widely used in many fields, such as teaching, researching, medical etc. especially suitable for academic exchanges and demonstration. This LCD Screen Camera mounted on microscope perfectly, with HD Pixels user can observe each detail of specimen clearly.

Body:-	Rugged, Robust, Single Aluminum Die-Cast, Corrosion Free, Ergonomic Design, Hand Rest for Comfortable Prolonged use. Metallic parts with Antirut, Antibacterial, Corrosion-proof & Stain-proof coatin, Acid Resistant Texture Paint, Touch Point Treated, Intensity Controller & ON/OFF Switch, Inbuilt Light Source on Lens Filter Holder, Rubber Feet.
Optical System :-	Universal Infinite Optical System, Achromatic Optical System, colour corrected, anti-fungal, anti-bacterial coated, (multi-layered hard coated), colour coded objectives.
Viewing Head :-	7.0 inch LCD Display, Resolution 1024x 600, Image Sensor 2.16M IMX290 (C), Pixel Size 1/2.8" (5.57" x 3.13), Frame Rate 30fps@ 1920 x 1080, 4GB Storage Card, Snap Record & Measurement feature.

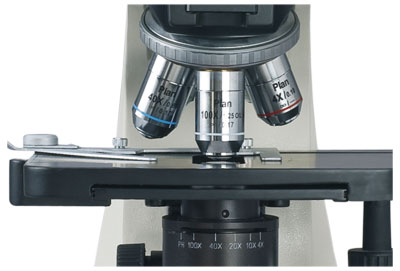

Objective :-	High resolution SEMI Plan Parfocal & Pre-centered Objectives 4X, 10X, 40X, 100X (Oil)
Nosepiece :-	Quadruple revolving on ball bearings, with rubber grip, inward tilted
Mechanical Stage :-	Double Layered Mechanical Stage, Rectangular Right/Left Hand low drive control, hard ceramic coating stainless steel, single/double slide holder, stage size 140x130mm, X-Y movement 50-76mm (Graduated with vernier min. accuracy 0.1mm) on stainless steel ball
Illumination :-	6V/20W/30W Halogen/Uniform Color Built-in LED 1/3W Illumines equivalent 6V-20/30W life upto 1 Lac hours, illumination intensity adjustable, lamp socket.
Focusing :-	Co-axial, focusing knob, tension control, upper limit stopper, 25mm stroke high sensitivity focus drive with 0.20mm per revolutions , fine adjustment 2.0µm/Div.
Condenser :-	Sub stage Abbe N.A. 1.25 for BF, Aspheric Lens, Separate movement from focusing (rack & pinion) with adjustable iris diaphragm, built-in base illumination, filter holder
Power Supply :-	SMPS Based, Wide Voltage Range, 90V-240V, 50/60Hz

Optical System :-	Infinite optical system (Antifungal)
Viewing Head :-	Seidentopf built-in digital binocular head inclined at 30°, Interpupilary 48-75mm, USB 2.0 Port
Eyepiece :-	WF10X18mm/22, diopter adjustable on both eyepiece
Objective :-	Achromatic Objective 4X, 10X, 40X, 100X
	Optional : Achromatic Objective 20X, 60X
Nosepiece :-	Backward quadruple nosepiece with multiple ball-bearing, rubber grip & click stop Accurate & reliable location
Mechanical Stage :-	Cross Travel 78(X)mm × 54(Y)mm, Rectangular 216 ×150mm, clamp double slides
Coaxial Focusing :-	Coarse Fine Adjustment : 22mm, Fine Division 0.002mm with Tension Control & Upper Limit Stopper
Condenser :-	Abbe condenser with iris diaphragm & blue filter
Illumination :-	Koehler 6V20W/30W Halogen, Intensity Control, 5W LED Illumination Brightness Adjustable
Image Sensor :-	16 million pixel science CMOS, Pixel 1.335mm
Display :-	10.5 inches IPS retina screen display, resolution 2048×1536
Operating System:-	Window 10 System
Communication, Storage :-	USB external interface and SD card interface, built-in WIFI-Wireless Module, Gigabit LAN interface, HDMI synchronized to the projector or related high-definition display equipment.
