industrial Portable Metallurgical Microscope

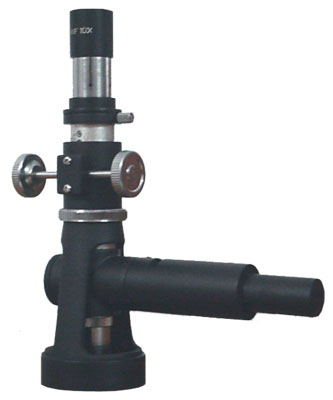

RMM-5A is a self-contained Portable Metallurgical Microscope, ideally used for inspecting metallography of metals in Laboratories, in situ, in field, etc. The Microscope is compact in size, Handheld design. It can be attached / fixed up against the surface of ferrous metal on any type of complicated surface (with optional magnetic stand). Polished surface area can be viewed with this instrument at different magnifications. All objectives are centered and parfocalised. The Microscope can also be used with digital camera for image process system, to save metallurgical images to PC for data transfer, analysis, storage, printouts etc.

Standard magnification	40x to 400x
Objectives	M4x, M10x, M20x & M40x.
Eyepiece	WF 10x
Illuminator	3W LED incident light through Epi-Illuminator with rechargeable battery pack etc. 110/220V AC. Detachable specimen locating device with a cross disc is also provided. A set of two filters in mount, vinyl cover and operating instructions, are supplied complete in a wooden storing cabinet.
Optional Accessories	Grain Size Eyepiece WF 10x, Micrometer Eyepiece WF10x, Filar Micrometer Eyepiece 10x,  Calibration Slide 1/100mm, CMOS Cameras,  Image Analysis Software, Magnetic stand with ON/OFF switch

RMM-5L is an industrial, handheld and self-contianted portable metallurgical microscope with vertical light source. Ideally used for inspection metallography of metals in laboratory or in-situ.
It can also be used for identification of casting quality, inspection of raw material or metallurgical structure research and analysis of processed material in factory and laboratory.
Microscope can be attached directly against the surface of ferrous metal at any angles for non-destructive examination on flat, curvature as well as other complicated surface with the help of optional magnetic base.
The microscope is fitted with a portable and easy to use rechargeable LED illuminator. Adjustable power supply 6V, 2.1W.

Semi Plan Objectives	M4x, M10x & M40x
Eyepieces	WF 10x & 15x
Magnification	40x - 600x
Mechanical Tube Length	160mm
Focusing	Coaxial coarse/fine focusing system, range 36mm
Illumination	Coaxial illumination, built in LED rechargeable & adjustable
Accessories	Charger, Spare LED, Illustrated Operating Instructions, etc.
Packing Case	Durable Wooden Storing Cabinet.

Grooved Laboratory Microscope Model RMM-6L

RMM-6L is an industrial, self-contained portable metallurgical microscope with vertical light source. Ideally used for inspection Metallography of metals in grooved, where other microscopes can not reach, like large ball bearings etc.
Microscope can be attached directly against the surface of ferrous metal at any angles for non-destructive examination on flat, curvature as well as other complicated surface with the help of magnetic base.
The microscope is fitted with a portable and easy to use rechargeable LED illuminator. Adjustable power supply 6V, 2.1W

Optional Accessories :-

•	Micrometer Eyepiece WF 10x with adjustable focusing.
•	Grain Size Eyepiece WF 10x with adjustable focusing.
•	Micrometer Slide 1/100mm.
•	Polarising Attachment
•	ProCAM CMOS Camera's & Image Analysis Software.
•	Magnetic Microscope Base, moveable in X-Y direction.
